Coating Thickness Meter TOP-CHECK Ferro-1001

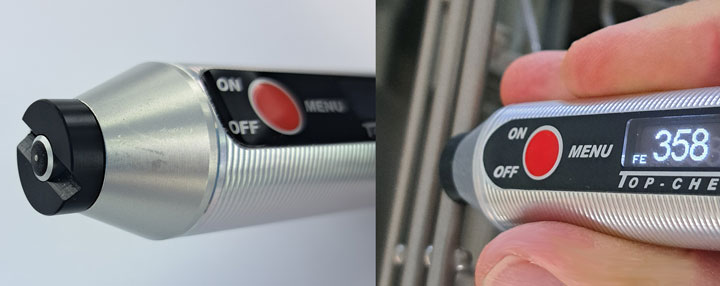

TOP-CHECK Ferro-1001 coating thickness gauge with self-aligning prism for optimal measurement of coatings on steel wires
List-Magnetik TOP-CHECK Ferro-1001 coating thickness gauges feature a small measuring probe and a self-aligning prism. This enables optimal measurement of coatings on wires and round stock. These compact devices are barely larger than the measuring probe itself and are ideal for measuring thin coatings on steel cables or spiral stirrups, for example.
The handy metal housing is splash-proof to IP 64 for trouble-free coating thickness measurements in harsh environments. With a single push button and self-explanatory multi-language menu navigation, the coating thickness gauges are easy to use.
Measure insulating coatings on iron and steel
The TOP-CHECK Ferro-1001 is the right choice for iron and steel substrates. The coating thickness gauge uses a magnetic inductive probe to measure coatings of varnish, paint, plastic, rubber, ceramics, galvanic coatings, and electroplated coatings (except nickel) according to ISO 2178.
Manage and Share Measurement Data with Free App
To further process your measurement data, you can pair your coating thickness gauge with Android and iOS mobile devices. Or communicate with a Windows PC. Wireless technology makes it possible. With the Lima Connect app, you can manage projects and assign measurement points to a photo. Measurement results can be statistically evaluated and graphically displayed. The app is free and available for Android, iOS and Windows.
|
Technical Data Coating Thickness Meter TOP-CHECK Ferro-1001 |
|
|---|---|
| Applications: | Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178) |
| Measuring probe: | tactile measuring probe with self-aligning prism |
| Measuring range: | on steel and iron: 0-1000 μm |
| Smallest Area: | ø 2 mm |
| Smallest curvature radius: | concave 6 mm, convex 1 mm |
| Calibration value: | 100 µm |
| Accuracy: | below 100 µm ± 1 µm, > 100 µm: ± 1 % |
| Resolution: | 1-100 µm: 0.1 µm, > 100 µm: 1 µm |
| Measuring units: | μm and mils |
| Operating conditions: | 0 - 50° C |
| Storage conditions: | 0-50 °C, 10-90% |
| Protection class: | IP64 |
| Display: | illuminated high contrast graphic OLED display |
| Display size: | 25 x 10 mm |
| Menu navigation: | English, German, French, Italian, Spanish, Hungarian, Polish, Dutch |
| Data logger: | 4000 measured values flexibly divisible |
| Statistics: | count / maximum / minimum / average / standard deviation |
| Interface: | wireless interface for communication with Android, iOS and Windows |
| App for Android, iOS, Windows: | free of charge via Google Play Store, Apple App Store, List-Magnetik website |
| Power supply: | 1x 1.5 V AA Mignon |
| Operating time: | approx. 50 hours |
| Dimensions: | Ø 28 x 95 mm |
| Packaging dimensions: | 12 x 12 x 4 cm |
| Weight: | 76 g (with battery) |
Models and scope of delivery Coating Thickness Meter TOP-CHECK Ferro-1001
| Coating Thickness Meter LM-TC-F1001 / Model TOP-CHECK Ferro-1001 with calibration base plate FE, 2 calibration foils, spare battery and case, including calibration certificate. The app for Android, iOS and Windows is free. |  |
 |
