Magnetic Field Meters

Residual Magnetic Field Meter MP-80 V2

Magnetometer / Gaussmeter for measurement of residual magnetism in metal

Residual Magnetic Field Meter MP-80

Version 2

Version 2 of the MP-80 Residual Magnetic Field Meter includes a data logger and a wireless interface so you can manage readings in the device or in the Lima Connect app.

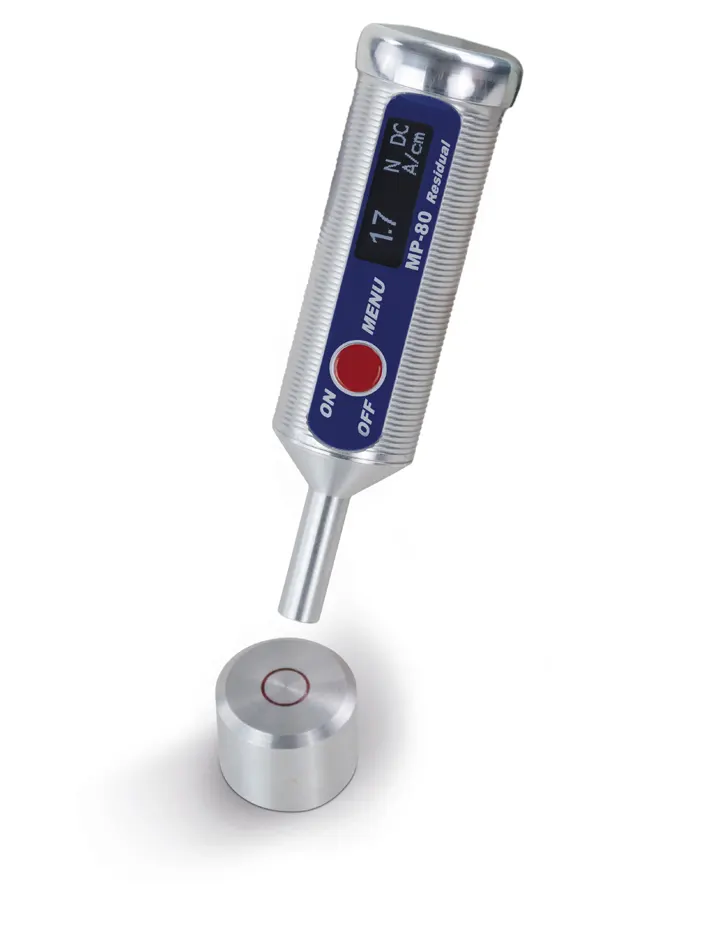

With the handy, battery-operated List-Magnetik MP-80 V2 residual magnetic field meter, you can quickly and reliably determine the residual magnetism, also known as remanence, on ferromagnetic iron and steel parts. The measuring device can also be used to check demagnetized parts.

The Hall sensor in the axial field probe is located at a defined measuring distance of 2.0 mm from the measuring surface.

The supplied calibration standard of 5 A/cm always gives you the certainty that your device is working correctly.



MP-80 Residual
Residual Magnetic Field Meter MP-80
Residual Magnetic Field Meter MP-80




Manage and send measurement data with a free application

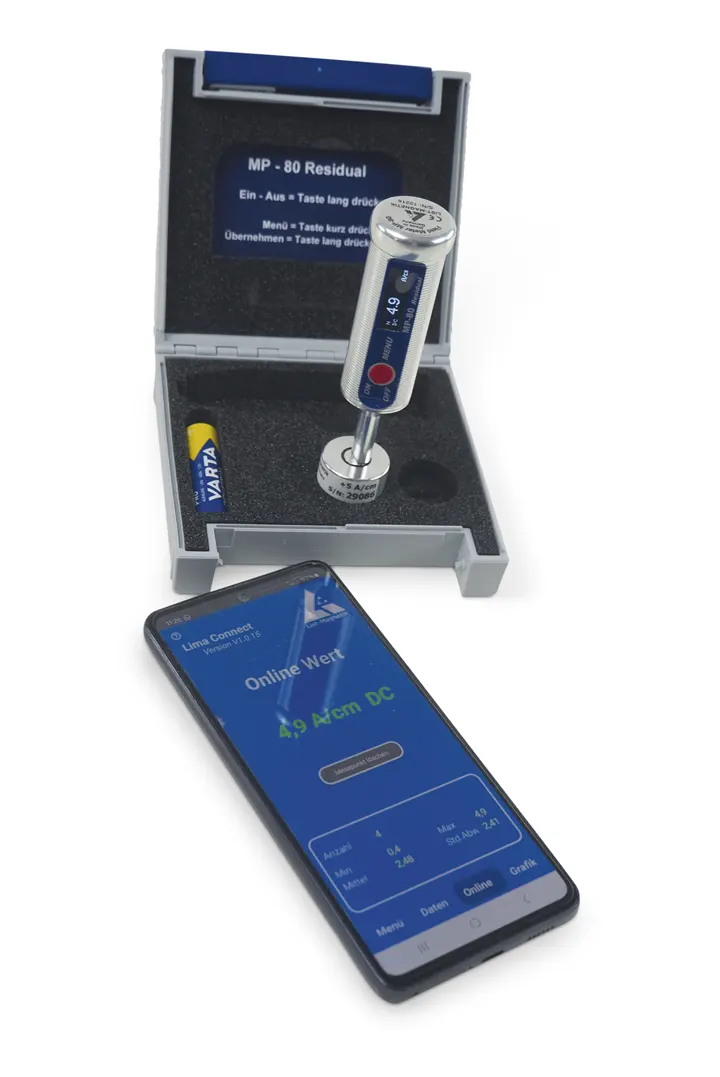

To further process your measurement data, you can pair your measuring device with mobile Android and iOS devices. Or you communicate with a Windows PC. This is made possible by wireless technology. With the Lima Connect app you can manage projects and assign the measuring points on a photo. The measurement results can be statistically evaluated and displayed graphically. The app for Android, iOS and Windows is free.

To the side Data transfer application Lima Connect

Technical Data Residual Magnetic Field Meter / Gaussmeter / Magnetometer MP-80 V2

Measuring units: A/cm – kA/m - Gauss (Oe) – Tesla
Measuring probe: integrated axial field probe, ø 8mm with defined measuring distance of 2.0 mm
Measuring range DC: Residual Magnetism / Remanence in the range 0-100 A/cm
Accuracy: in the homogeneous field ± 0,3 A/cm up to 10 A/cm,
± 3% of measured value from 10 A/cm
Resolution: 0.1 A/cm or 0.01 mT
Peak Hold: Recording rate approx. 10 readings / second
Display: OLED Graphic Display illuminated
Analog display: bar graph
Menu navigation: English, German, French, Italian, Spanish, Hungarian, Polish, Dutch
Data logger: 4000 measured values flexibly divisible
Statistics: count / maximum / minimum / average / standard deviation
Interface: wireless interface for communication with Android, iOS and Windows
App for Android, iOS, Windows: free of charge via Google Play Store, Apple App Store, List-Magnetik website
Power Supply: 1x 1.5 V AA Mignon
Operating Time: approx. 40 hours
Dimensions: Ø 28 x 103 mm
Weight: 70 g with battery
Download Data sheet MP-80

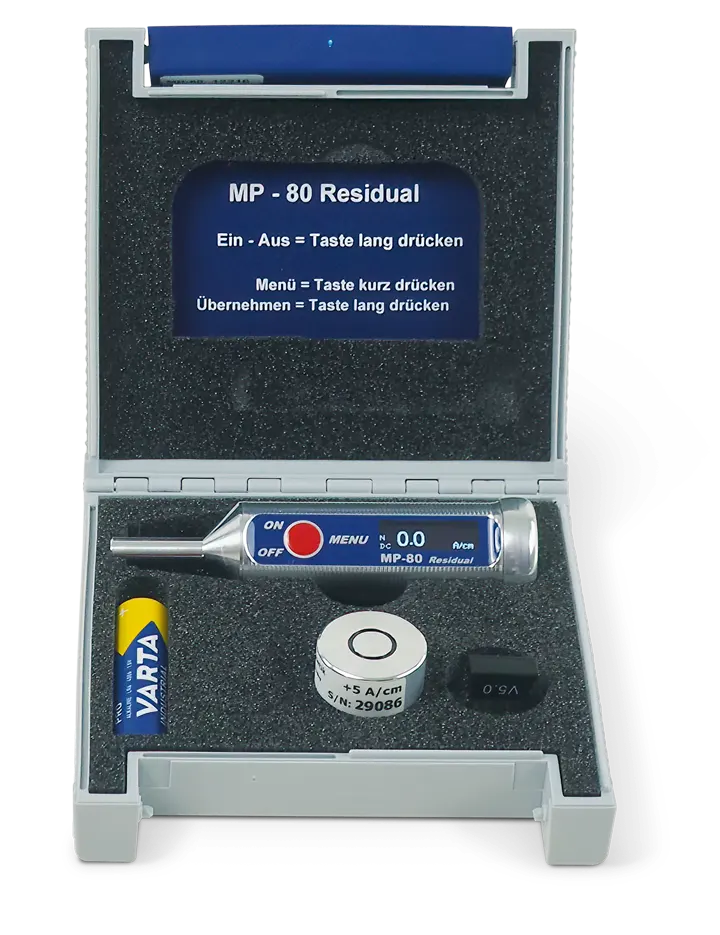

Scope of supply Residual Magnetic Field Meter / Gaussmeter / Magnetometer MP-80 V2:

Residual Magnetic Field Meter MP-80 V2


with integrated axial field probe, calibration standard 5 A/cm, spare battery and case, including calibration certificate Residual Magnetic Field Meter MP-80 To the shop Residual Magnetic Field Meter MP-80

Recommended Optionals Residual Magnetic Field Meter MP-80

Zero Gauss Chamber NGK-10

In order to be able to carry out the probe calibration for magnetic field measuring devices independently of the earth's magnetic field, a shielded Zero Gauss Chamber helps

Size up Zero Gauss Chamber NGK-10 To the shop Zero Gauss Chamber NGK-10

Measuring instruments by List-Magnetik - Made in Germany - Quality and durability

Firmware Update TCV2

Firmware Update
TOP-CHECK Dual, Ferro, Ferro-1000, FERRITE-CHECK 140, MP-810A/810T, MP-80V2
Revision 1.207

List-Magnetik GmbH

Click here for Update (.exe)

Magnet permeability meter FerroPro compact

Magnet permeability meter FerroPro compact



Magnetic Field Meter MP-810

Go to the side Magnetic Field Meter MP-810

Magnetic Field Meter MP-1000

Go to the side Magnetic Field Meter MP-1000

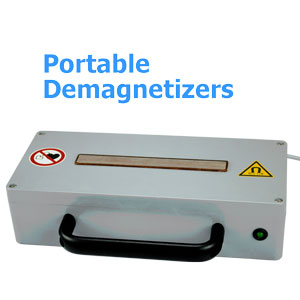

Portable Demagnetizing Device HE-20
