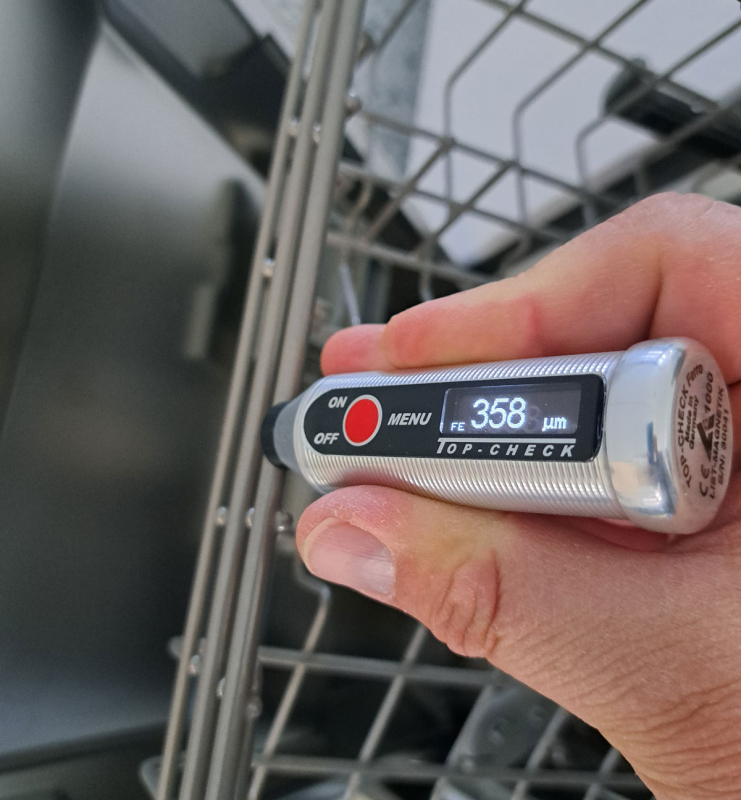

Coating Thickness Meter TOP-CHECK Ferro-1001 List-Magnetik TOP-CHECK Ferro-1001 coating thickness gauges feature a small measuring probe and a self-aligning prism. This enables optimal measurement of coatings on wires and round stock. These compact devices are barely larger than the measuring probe itself and are ideal for measuring thin coatings on steel cables or spiral stirrups, for example. For trouble-free measurements in harsh environments, the handy metal housing is splash-proof to IP 64. With a single button and self-explanatory multilingual menus, the instruments are very easy to use. TOP-CHECK Ferro-1001 is the right choice for iron and steel substrates. The instrument uses a magnetic-inductive probe to measure layers of paint, varnish, plastic, rubber, ceramics, galvanized and electroplated coatings (except nickel) according to ISO 2178. To further process your measurement data, you can connect your TOP-CHECK Ferro-1001 to mobile Android and iOS devices. Or you can communicate with a Windows PC. This is made possible by wireless technology. The memory can be divided flexibly. You can use the mobile device app to manage projects and assign measurement points to a photo. Measurement results can be statistically evaluated and graphically displayed. The app is free for Android, iOS and Windows.
|
|
|
Technical Data:
|
|
|
Applications:
|
Measurement of paint, varnish, plastic, anodized and galvanic coatings on steel (ISO 2178) |
|
Measuring probe:
|

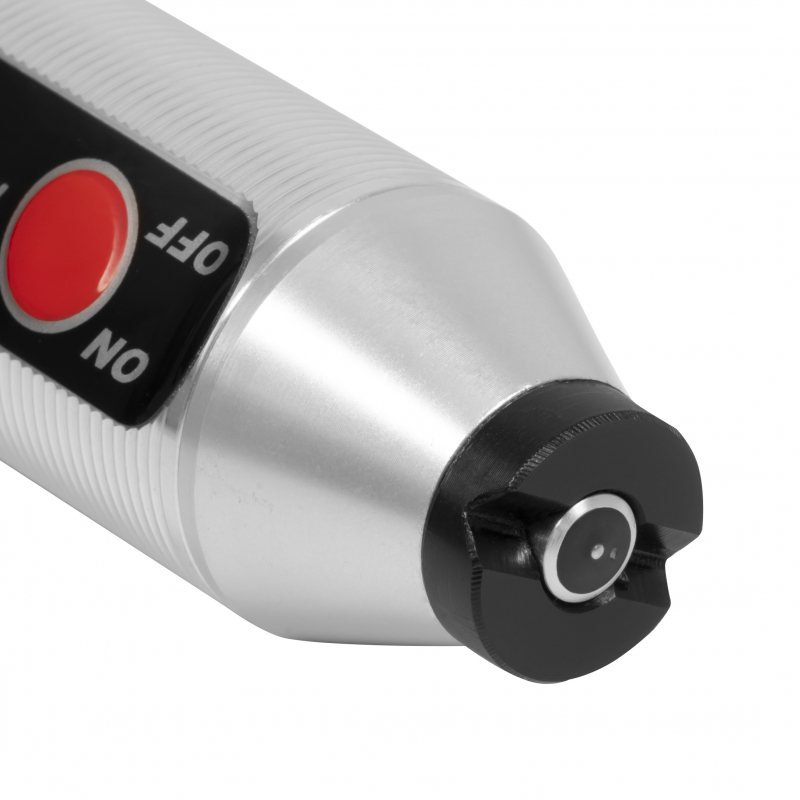

tactile measuring probe with self-aligning prism |
|
Measuring range:
|
on steel and iron 0-1000 µm |
|
Smallest Area:
|
ø 2 mm |
|
Smallest curvature radius:
|
convex 1 mm, concave 6 mm |
|
Calibration value:
|
100 µm |
|
Accuracy:
|
less than 100 µm ± 1 µm, > 100 µm: ± 1 % |
|
Resolution:
|
1-100 µm: 0.1 µm, > 100 µm: 1 µm |
|
Measuring units:
|
µm and mils |
|
Operating conditions:
|
0 - 50° C |
|
Storage conditions:
|
0-50 °C, 10-90% |
|
Protection class:
|
IP64 |
|
Display:
|
illuminated high contrast graphic OLED display |
|
Display size:
|
25 x 10 mm |
|
Menu navigation:
|
English, German, French, Italian, Spanish, Hungarian, Polish, Dutch |
|
Data logger:
|
4000 measured values flexibly divisible |
|
Statistics:
|
count / maximum / minimum / average / standard deviation |
|
Interface:
|
wireless interface for communication with Android, iOS and Windows |
|
App for Android, iOS, Windows:
|
free of charge via Google Play Store, Apple App Store, List-Magnetik website |
|
Power supply:
|
1x 1.5 V AA Mignon |
|
Operating time:
|
approx. 50 hours |
|
Dimensions:
|
Ø 28 x 95 mm |
|
Packaging dimensions:
|
12 x 12 x 4 cm |
|
Weight:
|
76 g (with battery) |
Scope of supply:
TOP-CHECK Ferro-1001 with calibration base plate FE, 2 calibration foils, spare battery and case, including calibration certificate. The app for Android, iOS and Windows is free.
